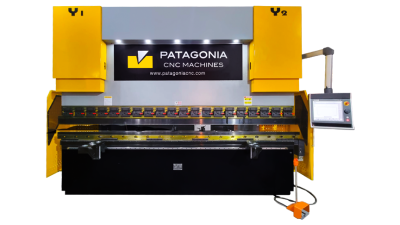

Patagonia CNC Electro-Hydraulic Press Brake

Patagonia CNC Press Brakes are built for fabricators who need precision, repeatability, and serious forming power in a machine platform designed to grow with production. These hydraulic and electrohydraulic bending systems are engineered to bring refined control, clean execution, and dependable performance to modern fabrication environments. Whether you are producing simple bends, structural components, formed panels, or high-volume repeat parts, Patagonia press brakes are designed to help your shop bend with greater confidence, consistency, and efficiency. Patagonia states that its press brake line is available in multiple lengths, power levels, and controller options, with support for 2, 3, 3+1, 4+1, and 6+1 axis configurations.

From growing fab shops to established production floors, these machines are built to reduce guesswork, improve throughput, and support a more advanced bending workflow. Patagonia also offers standard tooling ready for use, along with custom punches, dies, and die holders tailored to production needs.

Available Configurations

• NC

• 2-Axis CNC: Y/X

• 3-Axis CNC: Y1/Y2/X

• 3+1 Axis CNC: Y1/Y2/X/V

• 4+1 Axis CNC: Y1/Y2/X/R/V

• 6+1 Axis options available

Available Controller Options

• ESTUN E21

• DELEM DA53T

• DELEM DA66T

Available Sizes and Tonnage Options

• 40T / 1250

• 40T / 1600

• 40T / 2200

• 63T / 1600

• 63T / 2500

• 100T / 2500

• 100T / 3200

• 100T / 4000

• 125T / 3200

• 125T / 4000

• 160T / 2500

• 160T / 3200

• 160T / 4000

• 200T / 3200

• 200T / 4000

• 250T / 4000

• 250T / 6000

• 300T / 3200

• 300T / 4000

• 300T / 6000

• 500T / 2500

Key Advantages

• Hydraulic and electrohydraulic press brake solutions

• Multiple controller and axis packages for different production needs

• Standard tooling included and custom tooling available

• Built for scalable fabrication and repeatable bending performance

• Robotic bending cell integration available for automated workflows

Patagonia CNC Press Brakes bring strength, control, and refinement to the forming side of your operation. Built for precision. Configured for production. Ready to scale.
