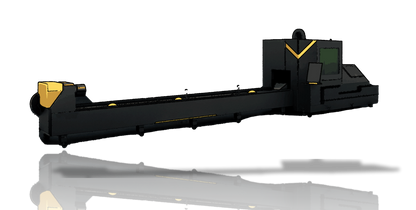

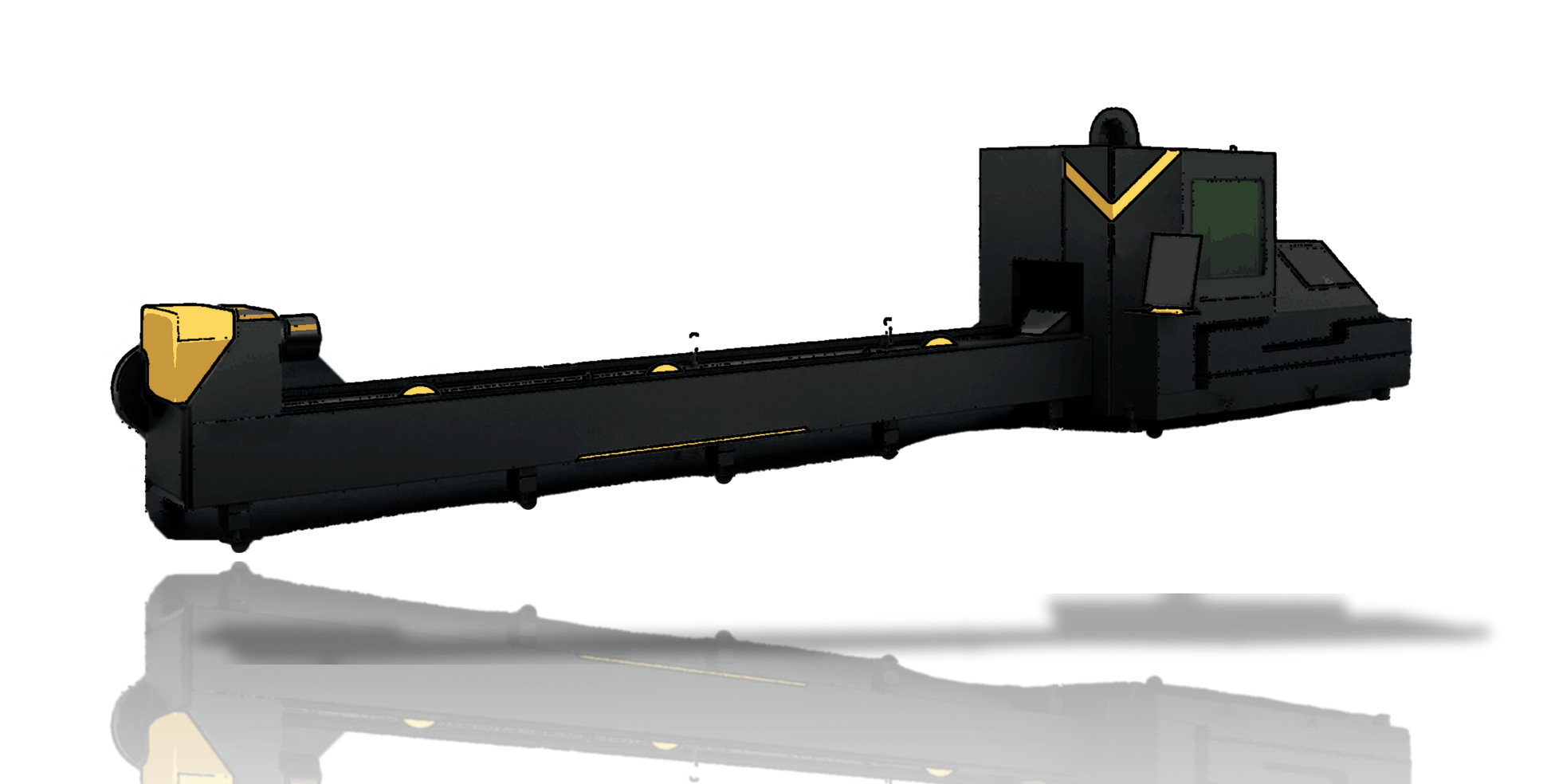

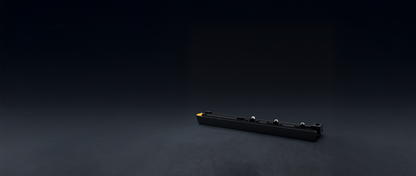

Patagonia Tube Fiber Laser Cutter

Patagonia Tube Fiber Laser Cutters are built for fabricators who need speed, precision, and control in a machine designed specifically for tube and pipe processing. Engineered for serious production environments, these systems deliver clean, accurate cuts across round, square, rectangular, oval, and specialty profiles, helping shops increase throughput while maintaining a refined, professional workflow. Patagonia’s PL-T Series is offered in multiple bed lengths, clamp configurations, and power levels to support everything from lighter-duty tube work to larger, more demanding production runs.

Designed for modern fabrication, the PL-T Series gives manufacturers a more capable platform for structural parts, frames, supports, chassis components, production tubing, and custom fabricated assemblies. With models available in both 2-clamp and 3-clamp configurations, Patagonia’s tube laser line is built to match different production goals while preserving the accuracy and repeatability serious shops require. Patagonia also offers semi-automatic loading solutions for T Series machines to further improve material handling and tube processing efficiency.

Available Models and Sizes

• PL-6016-T2 | 6,500 mm working length | approx. 21 ft

• PL-6024-T2 | 12,500 mm working length | approx. 41 ft

• PL-6036-T2 | 12,700 mm working length | approx. 42 ft

• PL-6036-T3 | 12,700 mm working length | approx. 42 ft

• PL-9036-T3 | 19,500 mm working length | approx. 64 ft

• PL-12036-T3 | 22,500 mm working length | approx. 74 ft

Available Tube Capacities

• 160 mm

• 240 mm

• 360 mm



Available Configurations

• 2-Clamp Models

• 3-Clamp Models

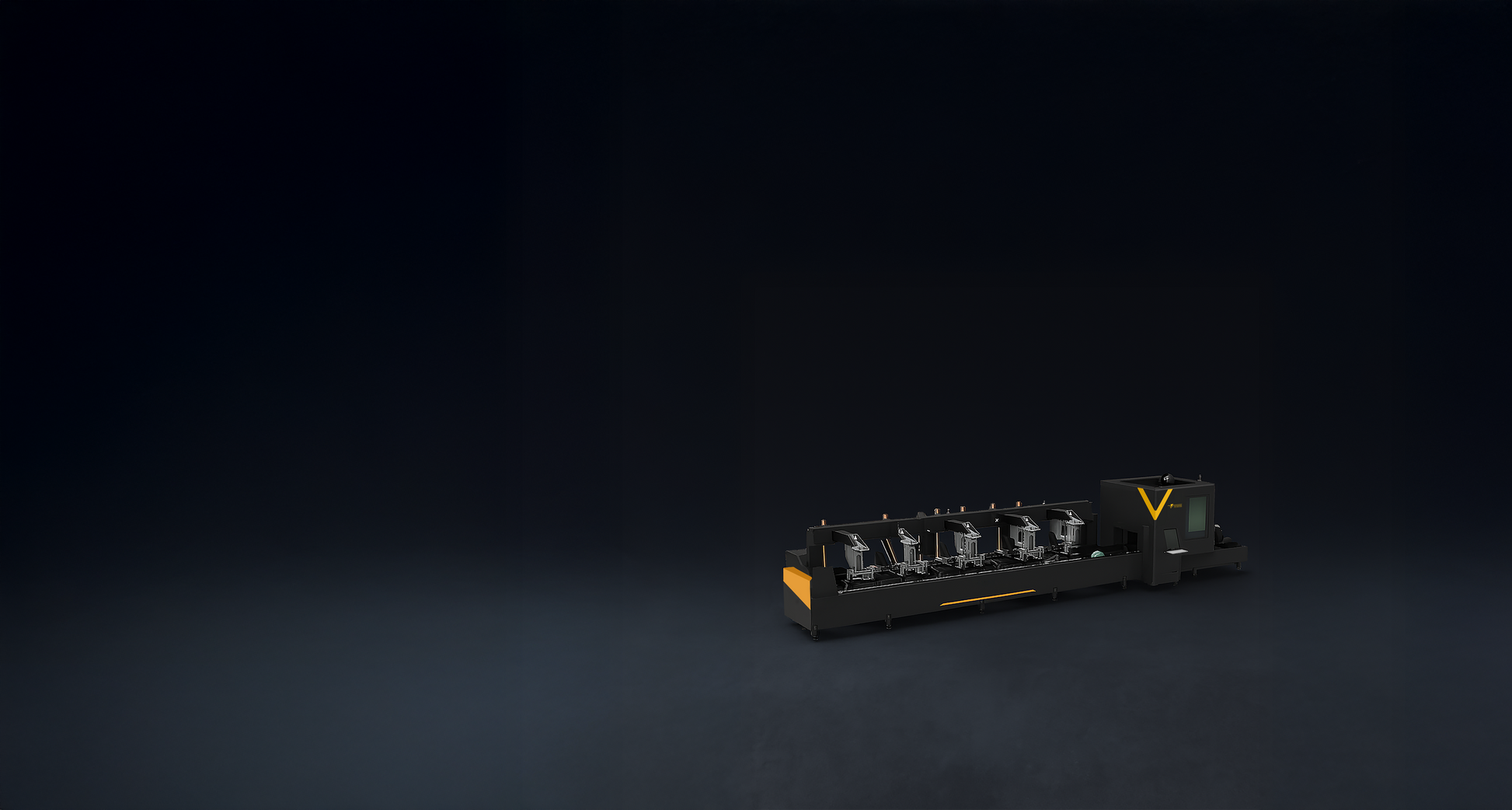

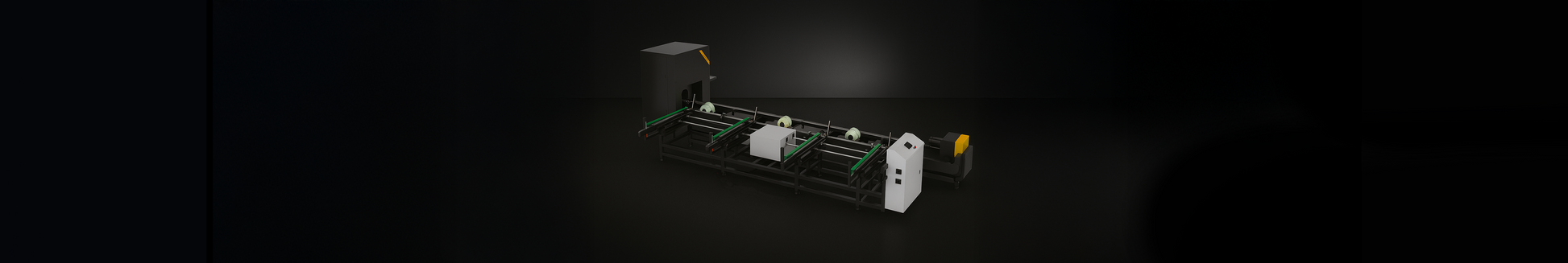

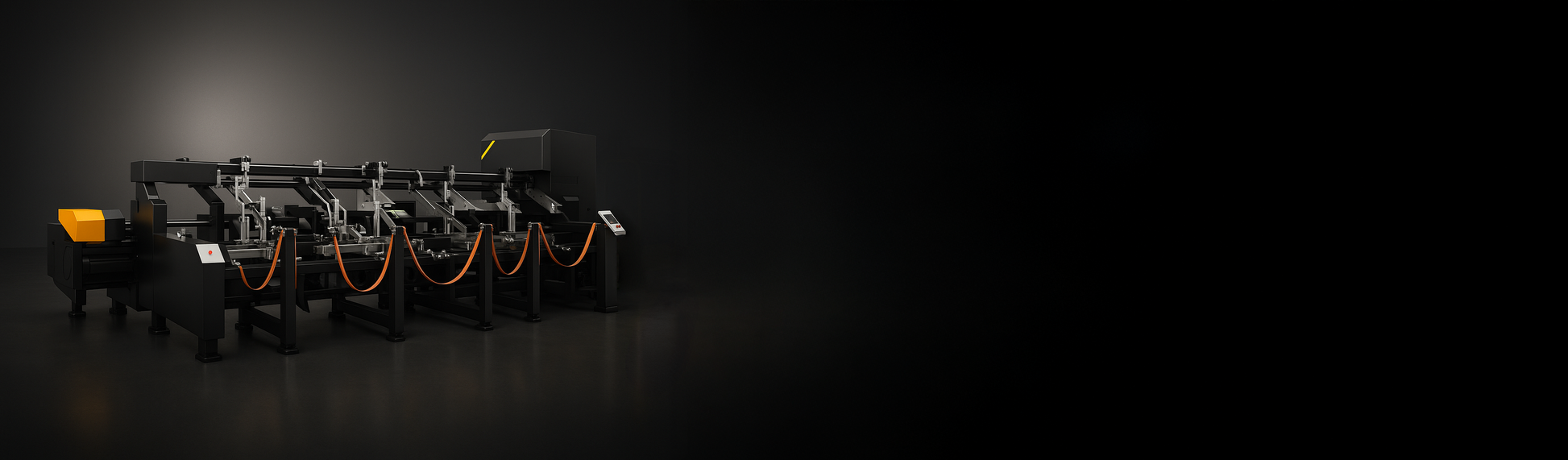

• Semi-automatic loading system available

• Tube-focused cutting platform adaptable to circular, oval, square, and other tube shapes

Available Power Options

• 1500W

• 3000W

• 6000W

Performance Highlights

• X-Y positioning accuracy: 0.05 mm / 0.002 in

• X-Y repositioning accuracy: 0.03 mm / 0.001 in

• Max. linkage speed: 60 m/min / 197 ft/min

The Patagonia PL-T Series is built for shops that want tube cutting power without compromise. More precision. More production range. More control where it counts.
